Specification

Feature: Extended Tool Life and Enhanced Heat Dissipation

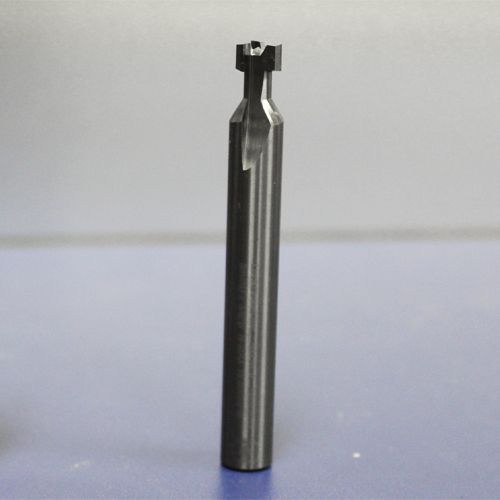

SKU: E1000-B-EU *(3/8″/9.525mm shank)

• 2 Flute Cutter

• Designed for Particle Board, Low Density Plywood, Low to Medium Density MDF

• 100% Carbide

• Cutting Length: 11 mm

• Overall Length: 76.2 mm

• Shank Diameter: 9.525 mm (3/8″)

• Use with standard CNC Router

Recommended Speed and Feed

• Speed: 18000 RPM

• Feed rate: 15000-20000 mm/min (600-800 inches/min)

• Plunge rate: 4000 mm/min (158 inches/min)

Purpose

    • use for E900BP, E900BM, E900BP-5, E900DH-P, E900DH-M, E910DH-P, E910BP and All Drawer Slides
