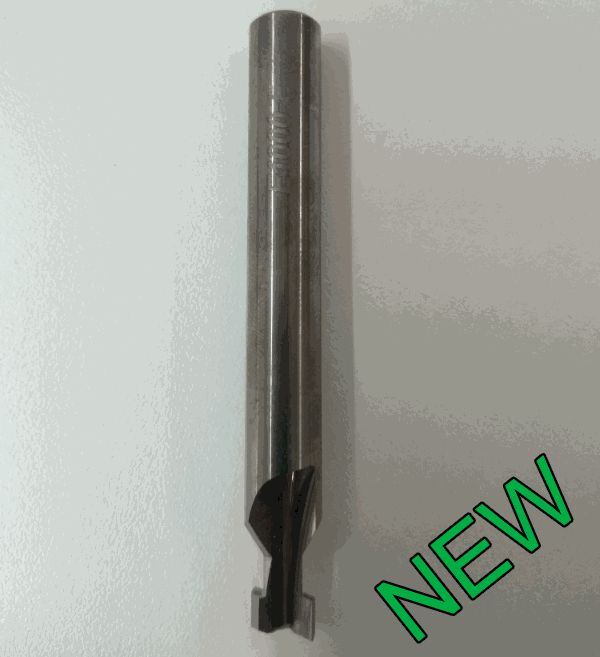

E1000-E LD T-Slot Router Bit (8.3mm for Channel Lock ONLY)
use for E900BP, E900BM, E900BP-5, E900DH-P, and E900DH-M
Specification
Feature: 8.3mm flute
SKU: E1000-E *(3/8″/9.525mm shank)
• 2 Flute Cutter
• Designed for Particle Board, Low Density Plywood, Low to Medium Density MDF
• 100% Carbide
• Cutting Length: 11 mm
• Overall Length: 76.2 mm
• Shank Diameter: 9.525 mm (3/8″)
• Use with standard CNC Router
Recommended Speed and Feed
• Speed: 18000 RPM
• Feed rate: 15000-20000 mm/min (600-800 inches/min)
• Plunge rate: 4000 mm/min (158 inches/min)
Purpose
• use for E900BP, E900BM, E900BP-5, E900DH-P, and E900DH-M
