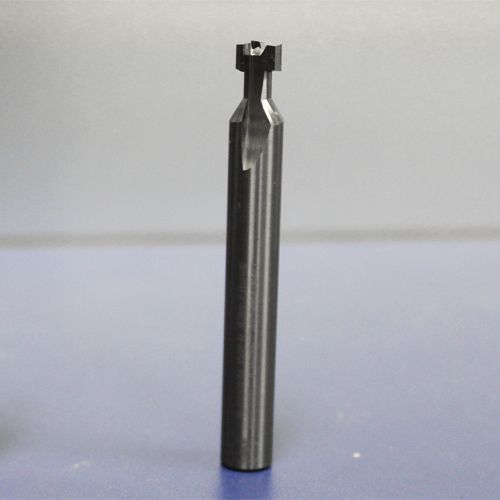

SKU: E1000-B50 *(3/8″ shank)
Multi Purpose use with
E900BP, E900BP-9, E900P, E910BP, E900BM Specification
For use with Benz Aggregate
Heads # G10M4
50 mm shaft for use with the Benz Compact Head
Specifications
• 2 Flute Cutter
• Designed for Particle Board, Low Density Plywood, Low to Medium Density MDF
• 100% Carbide
• Cutting Length: 11 mm
• Overall Length: 50 mm
• Shank Diameter: 9.525 mm (3/8″)
• Use with standard CNC Router
Recommended Speed and Feed
• Speed: 18000 RPM
• Feed rate: 15000-20000 mm/min (600-800 inches/min)
• Plunge rate: 4000 mm/min (158 inches/min)
Purpose
• Create slots to use with Lockdowel Channel Lock and H-Clip fastening system
• Create slots for drawer slides
